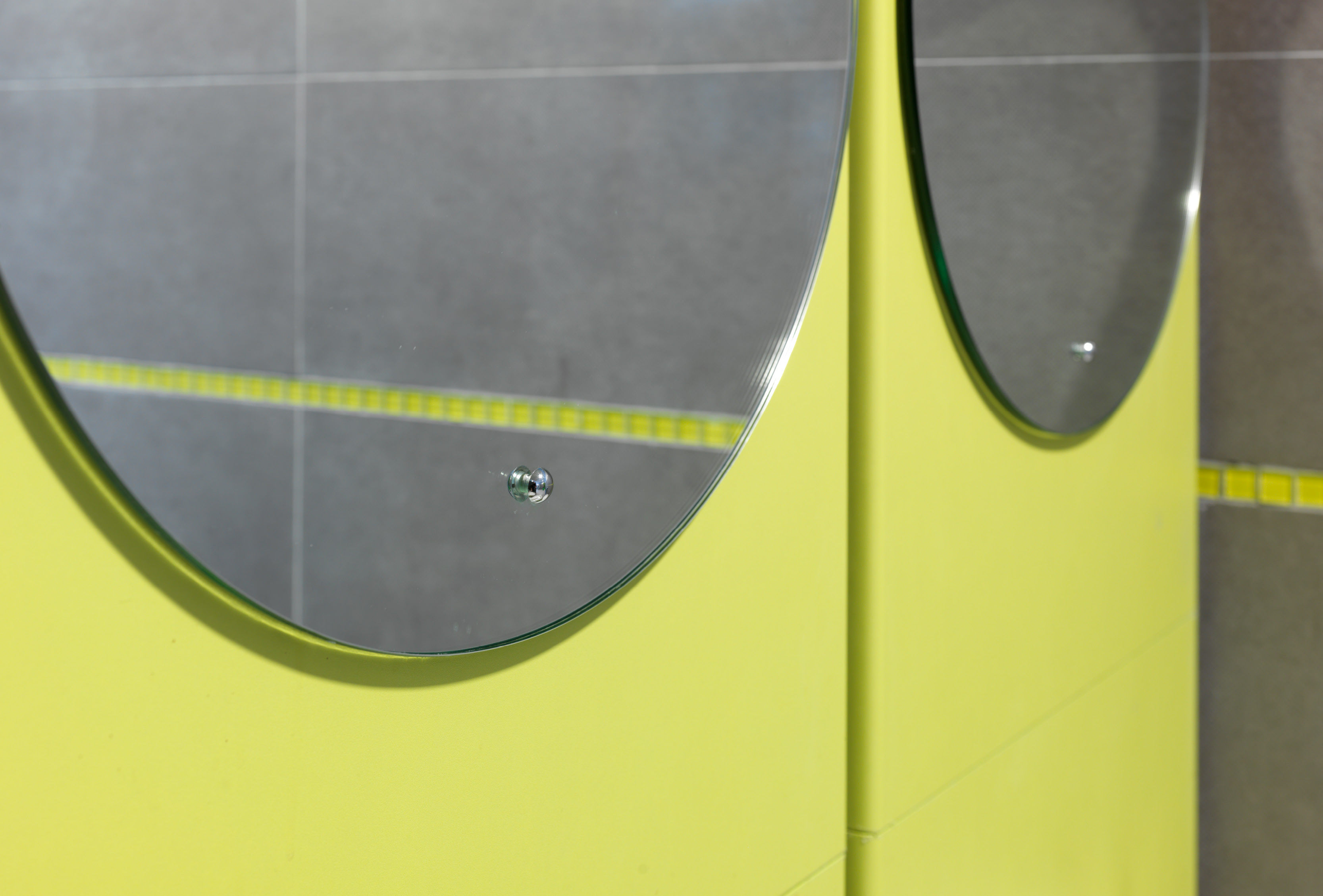

Low-cost, duct panelling system for easy installation onto your timber frame.
The best value for function, finish and easy installation.
Designed for your own build and installation, Rapiduct panelling is flexible enough to suit any wet or dry washroom environment. You can specify Rapiduct with any Venesta cubicle or vanity system and is available in six material options, in a wide range of colours and finishes. You have complete design flexibility with your own choice of sanitaryware.

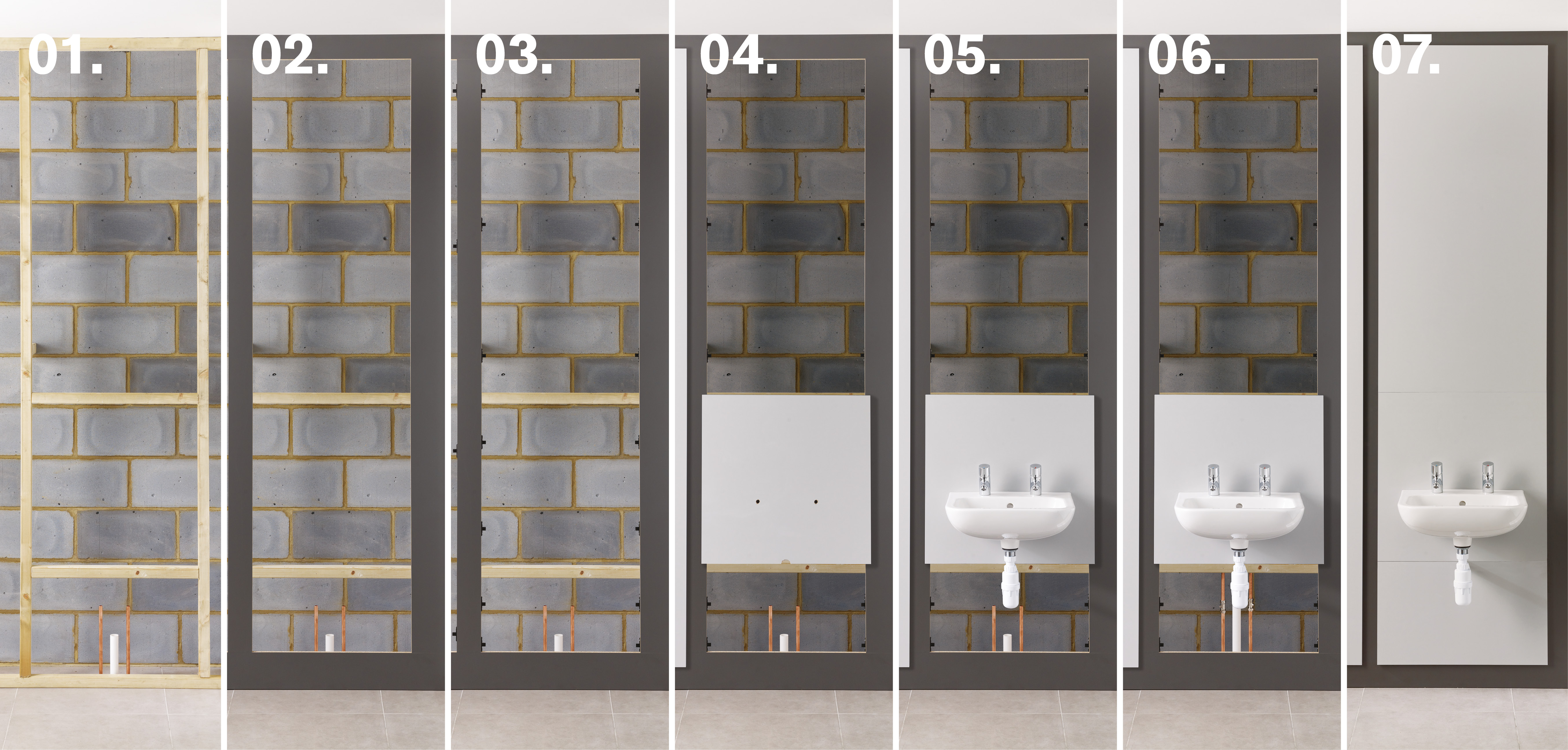

01. Install timber-frame (supplied by others) (30 minutes).
02. Fit base flashgaps to the site frame followed by vertical, horizontal and top flashgaps (20 minutes).
03. Attach fixing clips to the inside edge of the vertical flashgaps, repeat process on back face of panels (30 minues).
04. Drill or cut out for sanitaryware (10 minutes).
05. Mount combined panel, sanitaryware and brassware into flashgaps before completing pipework (20 minutes).
06. Once all the units are in position, connect the plumbing and services (10 minutes).
07. Simply attached the top and bottom panels to the units (5 minutes).
Select from a range of colours and materials, and order samples.
Our MFC toilet cubicles and panelling are available in all of our V Ranges, enabling you the ultimate style on a budget. We believe in matching products to our clients’ budgets and specifications. Quality doesn’t have to be expensive, as proved by our MFC washroom cubicles and panelling. Manufactured from 19mm nominal thickness high performance, melamine-faced chipboard with ABS edging, they are the ideal solution for dry environments with a low risk of vandalism. Although designed for dry room environments, our MFC toilet cubicles and panelling are nonetheless manufactured from high performance moisture-proof chipboard. Our MFC toilet cubicles and panelling solutions are available in 34 different laminate colours.
Our high pressure laminate (HPL) washroom cubicles and panelling are the affordable solution for more heavily used areas. Heat, scratch, impact and cigarette burn resistant, our high pressure laminate toilet cubicles are available in 34 different laminate colours. Manufactured from moisture-resistant chipboard faced with high pressure laminate; panels are 19mm nominal thickness with edges lipped with ABS. Across our entire range of HPL toilet cubicles and panelling, you will find the quality is uppermost. Our HPL washroom cubicles are installed in schools, offices, shopping malls, universities, or wherever there is a need for a hardwearing, robust toilet and washroom solution. Venesta’s high pressure laminate washroom cubicles and panelling are durable, sturdy and impact resistant.
If you need ultimate water resistance and impact protection, we offer our SGL toilet cubicles and panelling. Manufactured from tough, 13mm solid grade laminate, our SGL toilet cubicles and panelling meet the most stringent specifications of durability and hygiene. Our SGL washroom cubicles and panelling are totally impervious to water and available in 34 laminate colours. Offering maximum resistance to vandalism, our SGL toilet cubicles and panels feature polished black radiused edges, and are a nominal 13mm in thickness. Enhanced by high quality fittings, and available in both standard and bespoke size options, our SGL washroom cubicles are the ultimate choice for demanding environments, whether wet or dry. We pride ourselves in offering you products that meet both your site requirements and your budget. Our SGL toilet cubicles are available in the majority of our ranges, meaning we have SGL washroom cubicles to meet your exact specifications.
VEN324 | LRV 17
Order a sampleVEN370 | LRV 35
Order a sampleVEN366 | LRV 52
Order a sampleVEN365 | LRV 65
Order a sampleVEN354 | LRV 54
Order a sampleVEN378 | LRV 20
Order a sampleVEN367 | LRV 38
Order a sampleVEN368 | LRV 54
Order a sampleVEN360 | LRV 46
Order a sampleVEN361 | LRV 55
Order a sampleVEN359 | LRV 22
Order a sampleVEN353 | LRV 20
Order a sampleVEN371 | LRV 25
Order a sampleVEN377 | LRV 11
Order a sampleVEN356 | LRV 8
Order a sampleVEN364 | LRV 8
Order a sampleVEN348 | LRV 24
Order a sampleVEN376 | LRV 52
Order a sampleVEN352 | LRV 81
Order a sampleVEN369 | LRV 66
Order a sampleVEN351 | LRV 58
Order a sampleVEN350 | LRV 37
Order a sampleVEN349 | LRV 10
Order a sampleVEN337 | LRV 5
Order a sampleVEN319 | LRV 42
Order a sampleVEN363 | LRV 57
Order a sampleVEN362 | LRV 31
Order a sampleVEN372 | LRV 27
Order a sampleVEN358 | LRV 21
Order a sampleVEN374 | LRV 9
Order a sampleColourCoat is our vibrant range of contemporary spray painted colours, with an MDF core. Doors and pilasters are 35mm nominal thickness, partitions are 18mm nominal thickness. Doors, pilasters and panels finished in ColourCoat have a gloss value of 20%.
Edges are sprayed with a coat of primer and finished with 20% gloss pigmented lacquer.
Note: for V3 ColourCoat products, any colour from the RAL Classic Colour Chart can be chosen (except fluorescent or metallic).
RAL4006
Order a sampleRAL3000
Order a sampleRAL2008
Order a sampleRAL1023
Order a samplePantone 382
Order a sampleRAL5023
Order a sampleRAL9003
Order a sampleRAL7035
Order a sampleRAL7015
Order a sampleRAL7026
Order a sampleColourCoat High Gloss is our vibrant range of contemporary spray painted colours, with an MDF core. Doors and pilasters are 35mm nominal thickness, partitions are 18mm nominal thickness. Doors, pilasters and panels finished in ColourCoat High Gloss have a gloss value of 80%.
Edges are sprayed with a coat of primer and finished with 80% gloss pigmented lacquer.
Note: for V3 ColourCoat High Gloss products, any colour from the RAL Classic Colour Chart can be chosen (except fluorescent or metallic).
RAL4006
Order a sampleRAL3000
Order a sampleRAL2008
Order a sampleRAL1023
Order a samplePantone 382
Order a sampleRAL5023
Order a sampleRAL9003
Order a sampleRAL7035
Order a sampleRAL7015

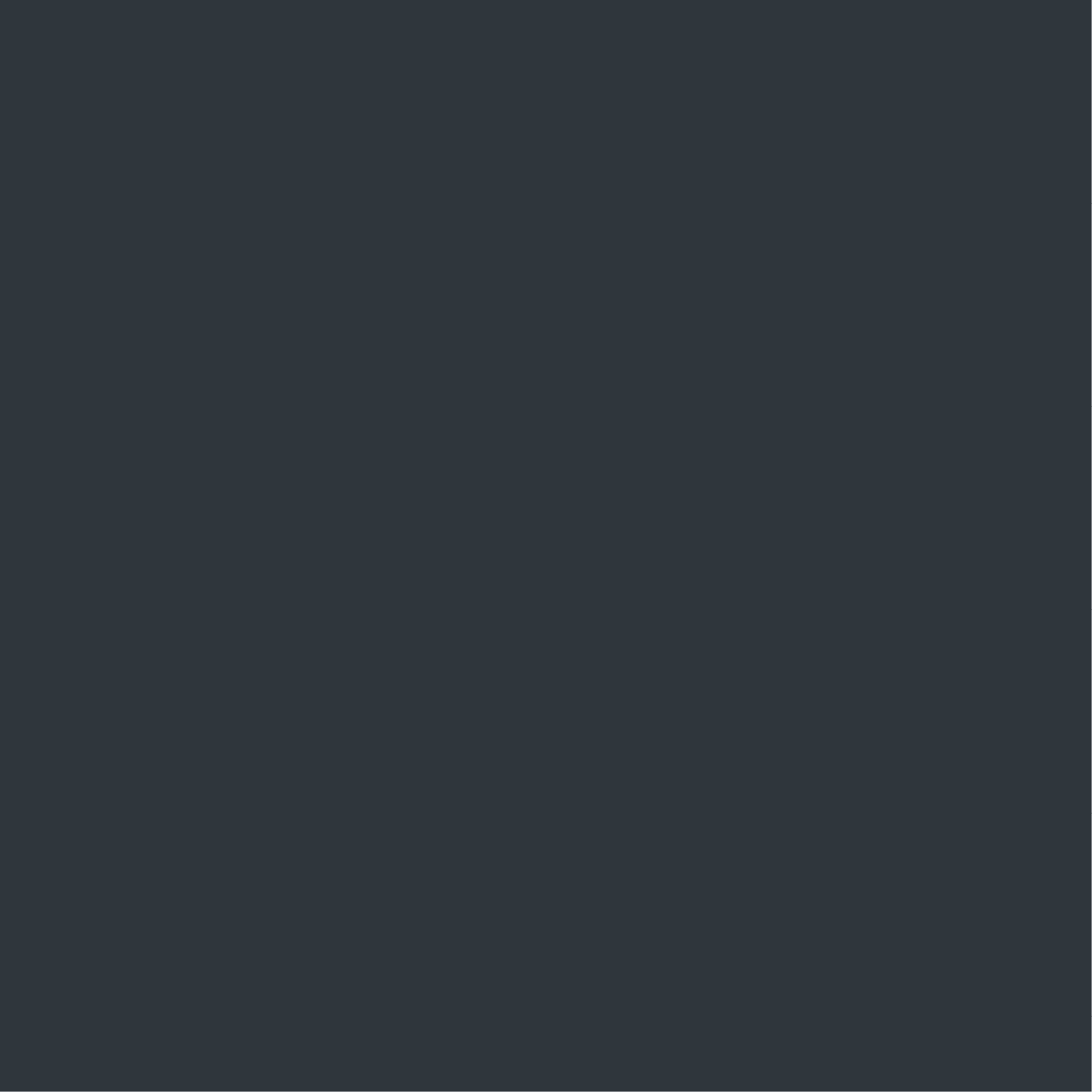

Order a sampleRAL7026
Order a sampleOur sleek Alpi real wood veneer washroom finishes have been carefully selected to bring warmth, vitality and luxury to your designs. Hardwearing, sustainable and great to look at, our real wood veneers are available across a range of our washroom systems.
Our real wood veneers are split into price brackets, with Group 1 being the lowest and Group 3 being the highest costs:

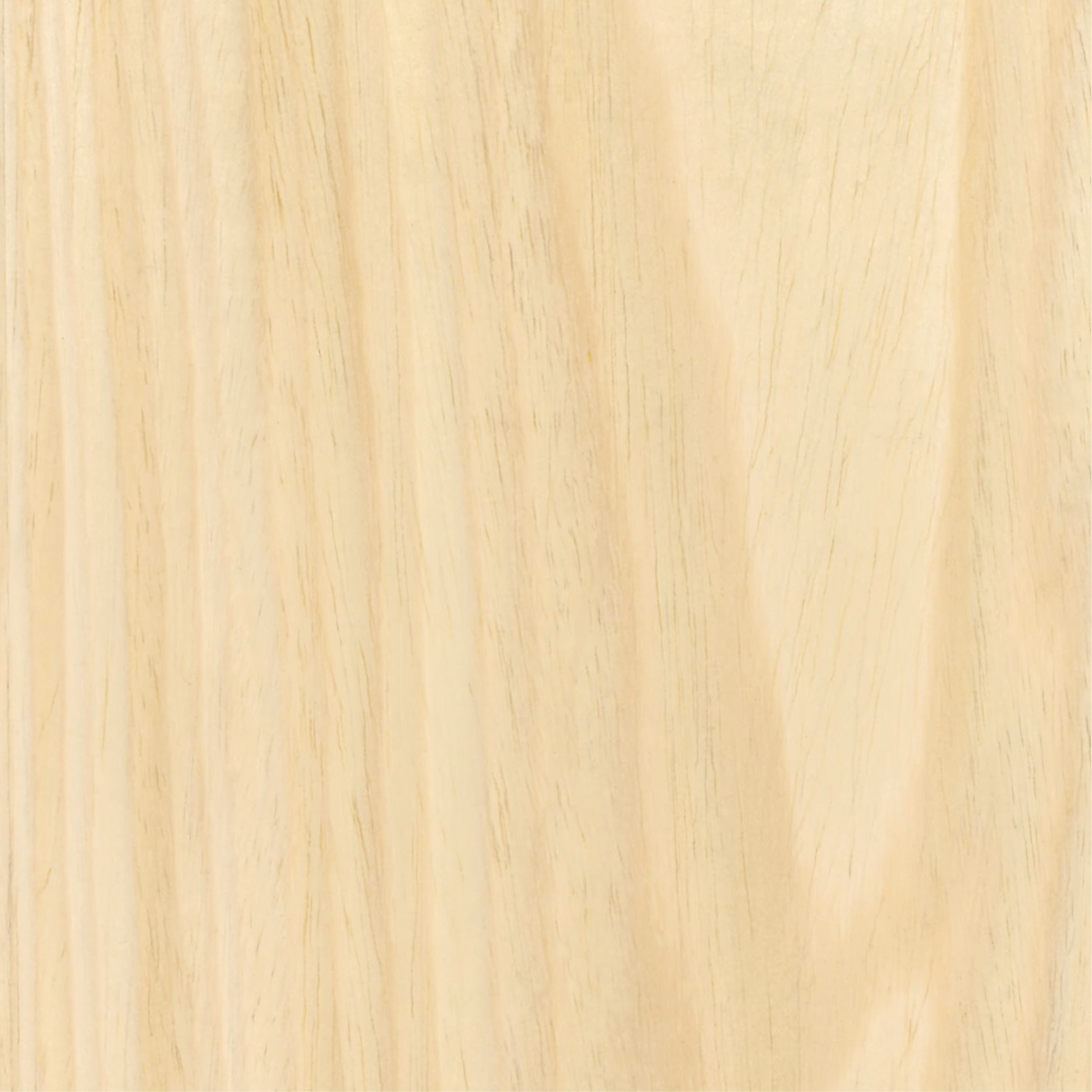

Group 1: Ash (Crown Cut), European Oak (Crown Cut)

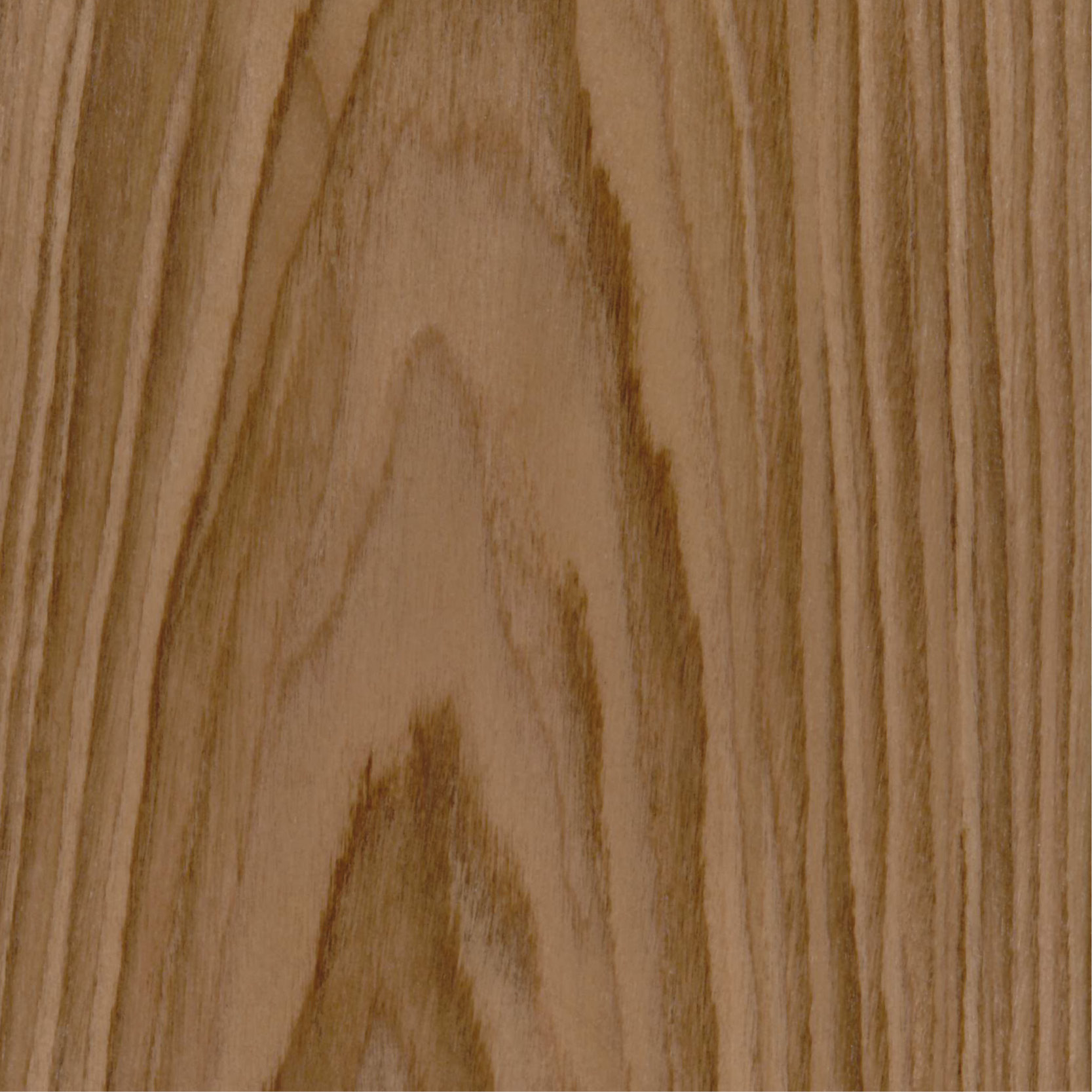

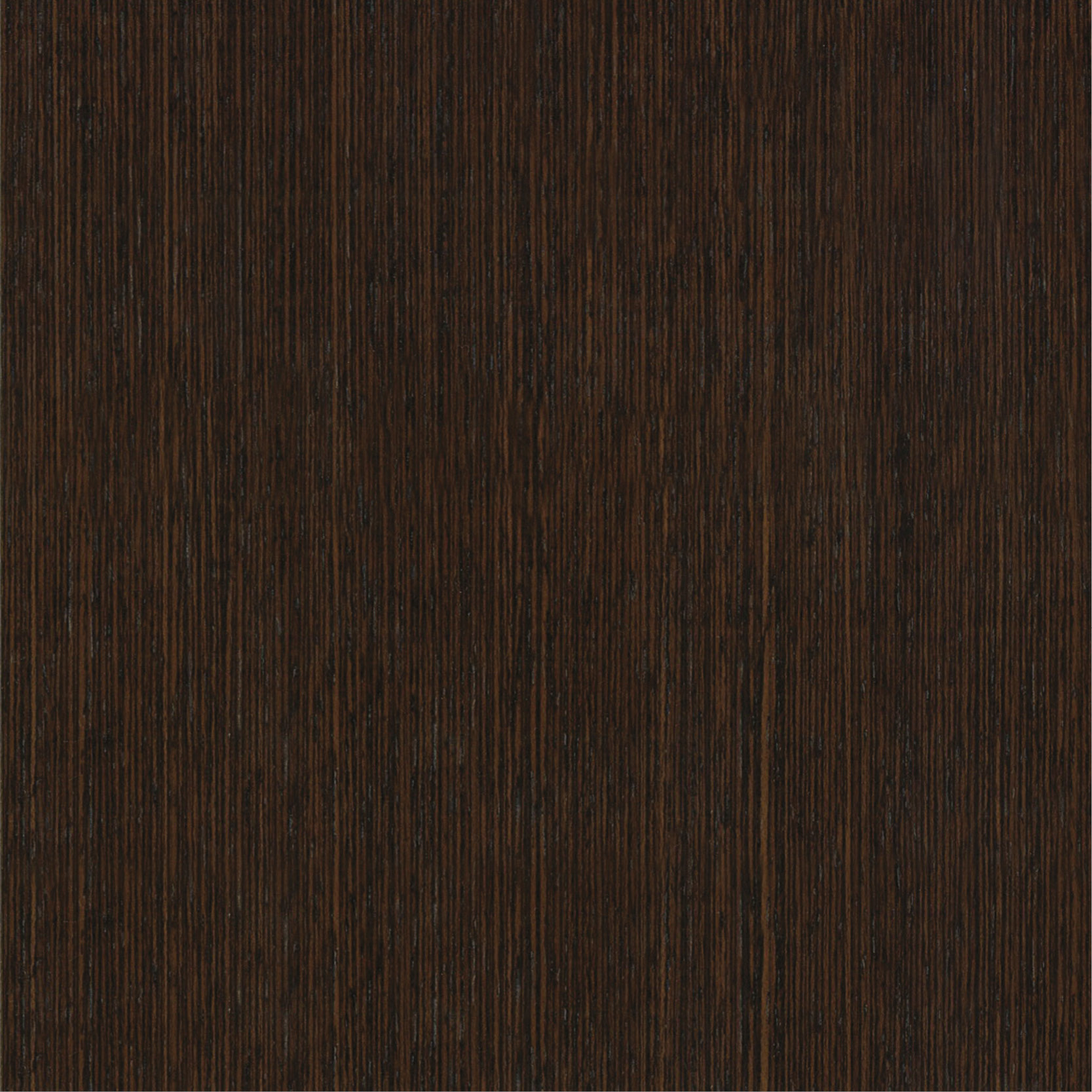

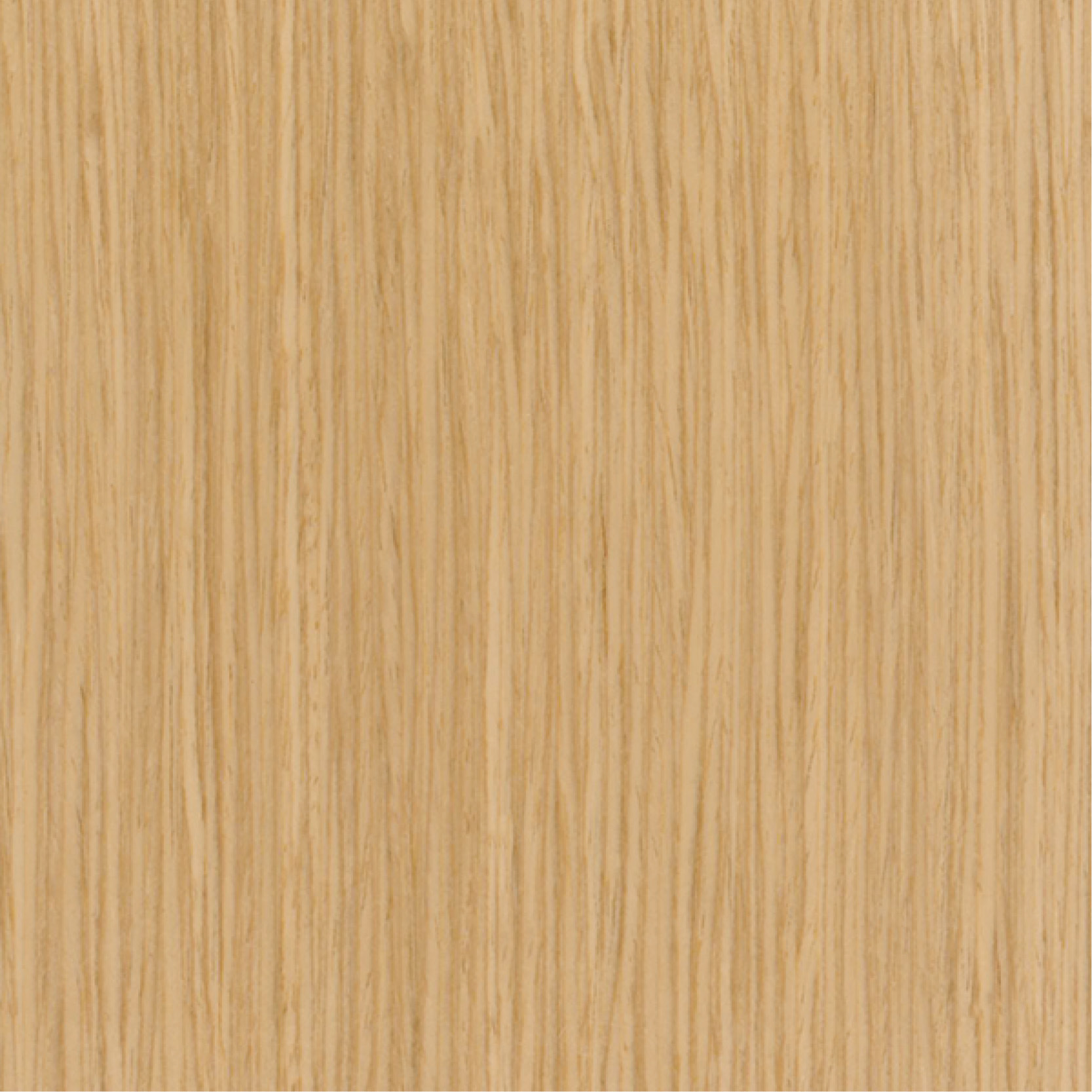

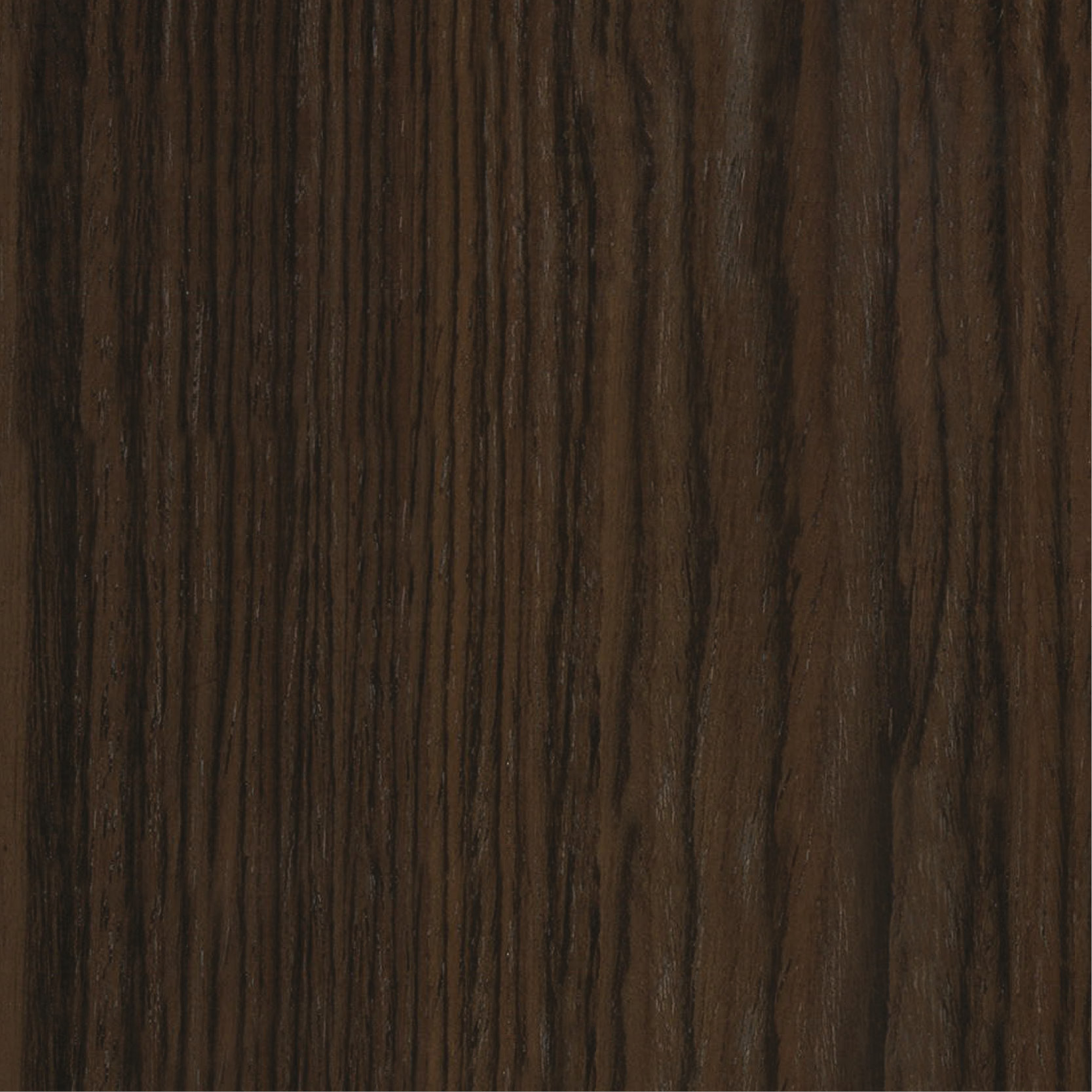

Group 2: American Black Walnut (Crown Cut), American Black Walnut (Straight Grain), European Oak (Straight Grain), Fumed Oak (Half Crown), American White Oak (Straight Grain), Teak (Straight Grain), Wenge (Straight Grain)

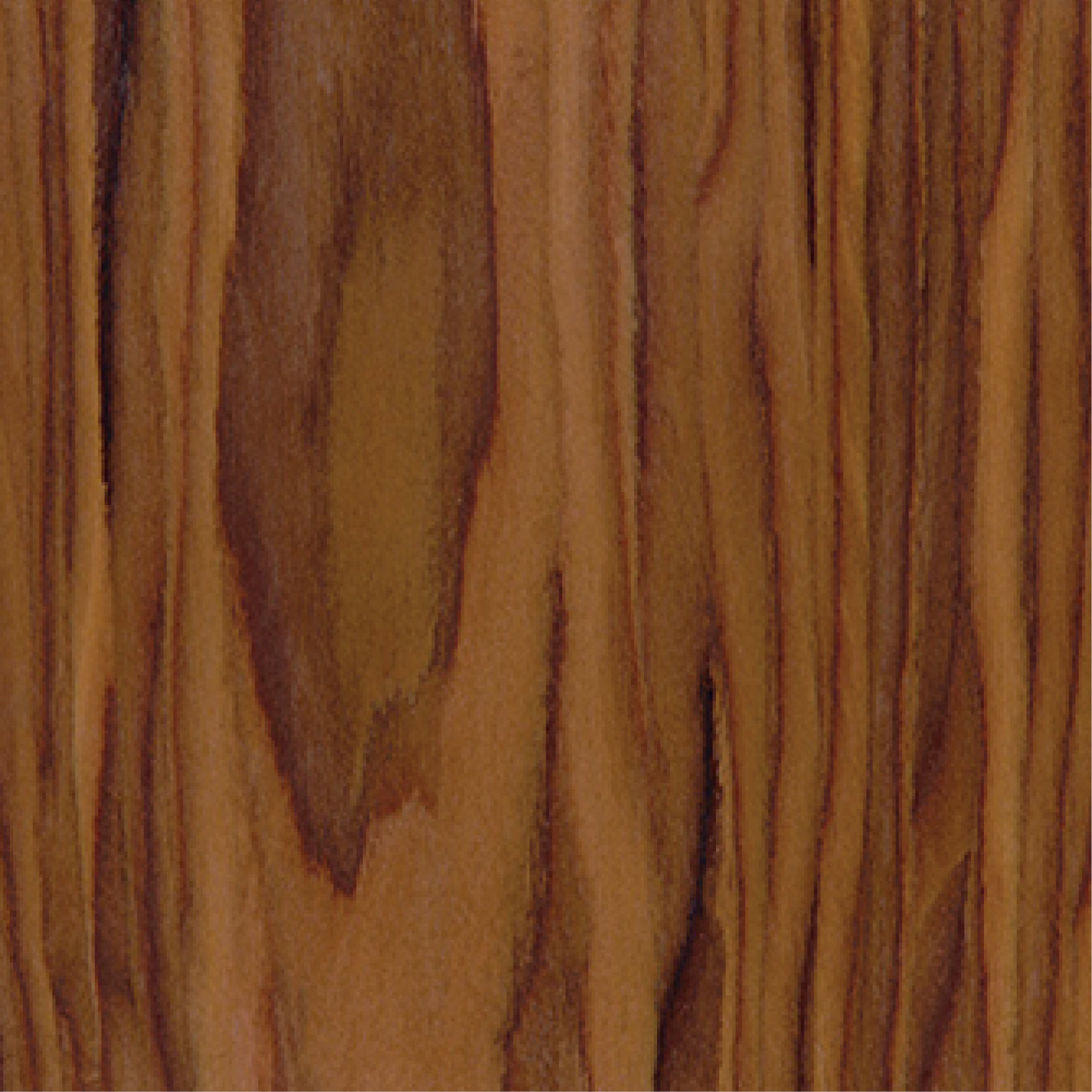

Group 3: Ebony (Straight Grain), Rosewood (Crown Cut)
Crown Cut
Order a sampleCrown Cut
Order a sampleStraight Grain
Order a sampleStraight Grain
Order a sampleCrown Cut
Order a sampleStraight Grain
Order a sampleStraight Grain
Order a sampleCrown Cut
Order a sampleStraight Grain
Order a sampleHalf Crown
Order a sampleStraight Grain
Order a sampleAvailable to suit site dimensions
Available in MFC, HPL, SGL, ColourCoat, ColourCoat High Gloss and Veneer.
MFC, HPL and SGL: 34 colours.
ColourCoat and High Gloss: 10 ColourCoat and High Gloss options available when specifying Rapiduct with V2 cubicle range. Unlimited ColourCoat and High Gloss options (any classic RAL) when specifying Rapiduct with a V3 cubicle range.
Veneer: Wide range of Alpi veneer options (varying price points).
MFC and HPL: All edges are lipped with ABS.
SGL: Polished black radiused edge.
ColourCoat and ColourCoat High Gloss: Edges are sprayed with a coat of primer and finished with high gloss pigmented lacquer.
Veneer: ABS lipping to match.
Flashgaps:Flashgaps have unfinished edges except return end flashgaps which will be ABS lipped (or polished if solid grade laminate)
MFC, SGL, ColourCoat, ColourCoat High Gloss and Veneer.
Concealed plastic clips fixed to edge of flashgap strips and reverse of facing panels.
Loose flashgaps only supplied by Venesta. Site frame supplied and fixed by site (softwood or similar).
For dry environments with low risk of vandalism. Panels are manufactured from 18mm nominal thickness high performance moisture-resistant melamine faced chipboard. Edges lipped with ABS.
For more heavily used washrooms, panels are heat, scratch and impact resistant. Manufactured from moisture-resistant chipboard faced with high pressure laminate, panels are 18mm nominal thickness. Edges lipped with ABS. Post-formed vertical edge option available.
Solid grade laminate is extremely resistant to impact and all surfaces are impervious to water. Panels are 13mm nominal thickness with polished black radiused edges.
Panels are 18mm nominal thickness MDF finished, sprayed with a coat of primer and finished with 20% high gloss pigmented lacquer.
Panels are 18mm nominal thickness MDF sprayed with a coat of primer and finished with 80% high gloss pigmented lacquer.
Manufactured from moisture resistant chipboard faced with real wood veneer, panels are 18mm nominal thickness. Edges lipped with matching ABS.
