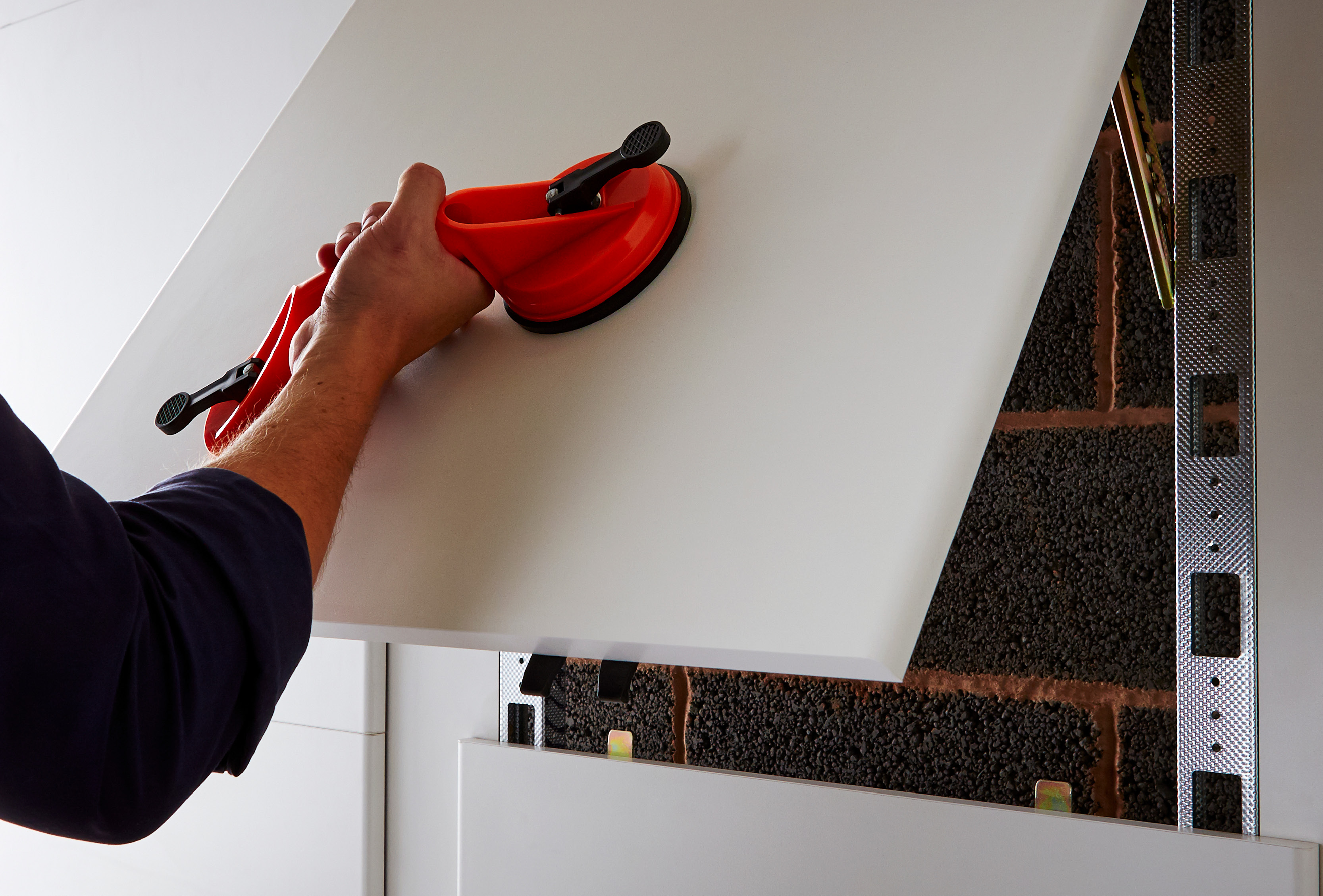

Vepps panels are quick and simple to install and leave you with easy access to concealed services.
The Vepps Wall System is a precision engineered, metal-framed pre-plumbed system supplied with factory fitted sanitaryware. All fully tested and ready to install, giving you a better quality finish.
Thanks to the unique dowel dock design, the panels always align perfectly.
The panels of our Vepps Wall System are designed specifically for healthcare areas where the duct needs to be formed into a complete wall system - typically in staff and public zones. They're quick and simple to install and leave you with easy access to concealed services.
Part of the Vepps range, the Wall System is a precision engineered, metal-framed pre-plumbed system supplied with factory fitted sanitaryware. All fully tested and ready to install, giving you a better quality finish.
Select from a range of colours and materials, and order samples.
Our MFC toilet cubicles and panelling are available in all of our V Ranges, enabling you the ultimate style on a budget. We believe in matching products to our clients’ budgets and specifications. Quality doesn’t have to be expensive, as proved by our MFC washroom cubicles and panelling. Manufactured from 19mm nominal thickness high performance, melamine-faced chipboard with ABS edging, they are the ideal solution for dry environments with a low risk of vandalism. Although designed for dry room environments, our MFC toilet cubicles and panelling are nonetheless manufactured from high performance moisture-proof chipboard. Our MFC toilet cubicles and panelling solutions are available in 34 different laminate colours.
Our high pressure laminate (HPL) washroom cubicles and panelling are the affordable solution for more heavily used areas. Heat, scratch, impact and cigarette burn resistant, our high pressure laminate toilet cubicles are available in 34 different laminate colours. Manufactured from moisture-resistant chipboard faced with high pressure laminate; panels are 19mm nominal thickness with edges lipped with ABS. Across our entire range of HPL toilet cubicles and panelling, you will find the quality is uppermost. Our HPL washroom cubicles are installed in schools, offices, shopping malls, universities, or wherever there is a need for a hardwearing, robust toilet and washroom solution. Venesta’s high pressure laminate washroom cubicles and panelling are durable, sturdy and impact resistant.
If you need ultimate water resistance and impact protection, we offer our SGL toilet cubicles and panelling. Manufactured from tough, 13mm solid grade laminate, our SGL toilet cubicles and panelling meet the most stringent specifications of durability and hygiene. Our SGL washroom cubicles and panelling are totally impervious to water and available in 34 laminate colours. Offering maximum resistance to vandalism, our SGL toilet cubicles and panels feature polished black radiused edges, and are a nominal 13mm in thickness. Enhanced by high quality fittings, and available in both standard and bespoke size options, our SGL washroom cubicles are the ultimate choice for demanding environments, whether wet or dry. We pride ourselves in offering you products that meet both your site requirements and your budget. Our SGL toilet cubicles are available in the majority of our ranges, meaning we have SGL washroom cubicles to meet your exact specifications.
VEN324 | LRV 17
Order a sampleVEN370 | LRV 35
Order a sampleVEN366 | LRV 52
Order a sampleVEN365 | LRV 65
Order a sampleVEN354 | LRV 54
Order a sampleVEN378 | LRV 20
Order a sampleVEN367 | LRV 38
Order a sampleVEN368 | LRV 54
Order a sampleVEN360 | LRV 46
Order a sampleVEN361 | LRV 55
Order a sampleVEN359 | LRV 22
Order a sampleVEN353 | LRV 20
Order a sampleVEN371 | LRV 25
Order a sampleVEN377 | LRV 11
Order a sampleVEN356 | LRV 8
Order a sampleVEN364 | LRV 8
Order a sampleVEN348 | LRV 24
Order a sampleVEN376 | LRV 52
Order a sampleVEN352 | LRV 81
Order a sampleVEN369 | LRV 66
Order a sampleVEN351 | LRV 58
Order a sampleVEN350 | LRV 37
Order a sampleVEN349 | LRV 10
Order a sampleVEN337 | LRV 5
Order a sampleVEN319 | LRV 42
Order a sampleVEN363 | LRV 57
Order a sampleVEN362 | LRV 31
Order a sampleVEN372 | LRV 27
Order a sampleVEN358 | LRV 21
Order a sampleVEN374 | LRV 9
Order a sampleVEN373 | LRV 11
Order a sampleVEN355 | LRV 13
Order a sampleVEN357 | LRV 36
Order a sampleVEN375 | LRV 45
Order a sampleUp to 850mm.
Standard height up to 3000mm.
Suspended option.
Solid option.
100mm high powder coated two part aluminium base rail to secure subframe units.
Hinged access panel using riveted linear-bearing hinges in zinc plated steel and nylon with riveted panel ratchets in zinc plated steel allowing 10 different opening heights.
Available in 34 laminate colours.
MFC: 1mm matching or contrasting ABS.
HPL: Post formed vertical edges with 1mm matching or contrasting ABS horizontal.
SGL: Radiused and black polished.
Rolled galvanised ultra steel subframe with riveted aluminium bracing bars, fitted to site frame with nylon click-fix locator brackets.
Subframe tie-back system using M8 zinc plated steel tie-back rods and supporting bracketry in zinc plated steel.
Micro panel lock in polished stainless steel to provide a tamper proof security fixing to the duct panels.
Sanitary appliances are pre-fixed and sealed to our Vepps system, unless stated otherwise, and rigorously tested.
Typically a disabled accessible WC.
For dry environments with low risk of vandalism. Panels are manufactured from 18mm nominal thickness high performance moisture-resistant melamine faced chipboard.
For more heavily used washrooms, panels are heat, scratch and impact resistant. Manufactured from moisture-resistant chipboard faced with high pressure laminate, panels are 18mm nominal thickness.
Solid grade laminate is extremely resistant to impact and all surfaces are impervious to water. Panels are 13mm nominal thickness.
File name | File type | |
---|---|---|
Product Portfolio | Brochure | |
Colour Selector | Brochure | |
Vepps & Frameduct MFC & HPL Panels 2BTW | CAD Blocks | |
Vepps & Frameduct SGL Panels 2BTW | CAD Blocks | |
Vepps & Frameduct MFC & HPL Panels 2WA | CAD Blocks | |
Vepps & Frameduct SGL Panels 2WA | CAD Blocks | |
Vepps HPL Post-Formed 100mm Baserail | NBS | |
Vepps HPL Square Edged 100mm Baserail (With Locks) | NBS | |
Vepps HPL Square Edged 100mm Baserail | NBS | |
Vepps MFC 100mm Baserail (With Locks) | NBS | |
Vepps MFC 100mm Baserail | NBS | |
Vepps SGL 100mm Baserail Locks (With Locks) | NBS | |
Vepps SGL 100mm Baserail | NBS | |
Vepps Wall Panels | Fixing Instructions |
A one-stop solution, made-to-measure pre-plumbed system. A metal framed, bespoke system that comes complete with factory fitted and tested sanitaryware. And with fewer tradesmen on site, the Vepps Wall Systems are quicker, cleaner and more cost-efficient to install. Ideal for a healthcare environment with enhanced infection control protocol.
