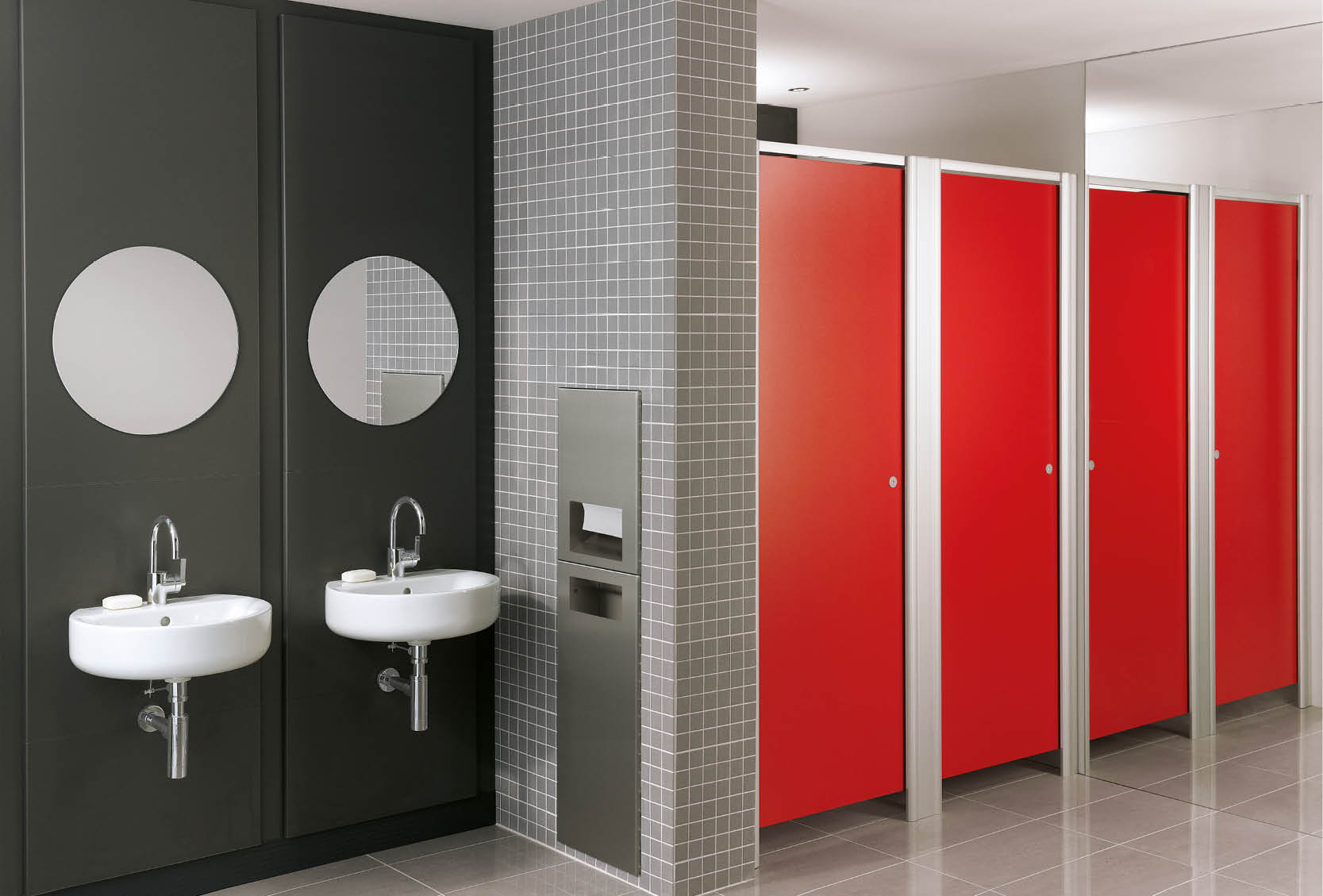

Standing tall, Centurion is chosen for its size, strength and a number of key features.
Aluminium headrails and fluted pilasters extend to the floor giving a high end look and ultimate rigidity.
Centurion toilet cubicles have emergency release indicator bolts as standard, ideal for high footfall washrooms.
Centurion has a robust frame design with fluted aluminium pilasters for maximum strength in busy washrooms.
Centurion's seamless pilasters extend down to the floor, so there's no need for pedestals.
Standing tall, Centurion is chosen for its size, strength and a number of key features. Easy to clean, robust and vandal-proof, these washroom cubicles come with hardwearing fittings. Wall channels offer extra rigidity and the aluminium headrails and fluted pilasters extend to the floor giving a high end look.
There are three panel material options to suit wet or dry environments, plus anti-finger-trap hinges makes Centurion a popular choice for schools, colleges and universities.
Centurion toilet doors and partitions come in a standard 2110mm height with a 100mm floor clearance or can be supplied with an overpanel above the door to offer a Full Height cubicle option. This range can also be extended further to reduce the gap all round for a full Privacy option.
Explore the options available when specifying Centurion toilet cubicles - from standard height, to Centurion Full Height and Centurion Privacy.
MFC: 2092mm.
HPL: 2062mm.
SGL: 1922mm.
100mm.
20mm.
For dry environments with low risk of vandalism. Panels are manufactured from 19mm nominal thickness high performance moisture-resistant melamine faced chipboard. Edges lipped with ABS.
For more heavily used washrooms, panels are heat, scratch and impact resistant. Manufactured from moisture-resistant chipboard faced with high pressure laminate, panels are 19mm nominal thickness. Edges lipped with ABS.
Solid grade laminate is extremely resistant to impact and all surfaces are impervious to water. Panels are 13mm nominal thickness with polished black radiused edges.
Available in MFC, HPL and SGL.
MFC, HPL and SGL: 34 colours from the standard range.
Cubicle hardware: Satin andoised aluminium and satin anodised effect powder coated zinc.
MFC and HPL: Matching ABS lipping.
SGL: Polished black radiused edge.
High strength extruded satin anodised aluminium headrail.
High strength extruded fluted satin anodised aluminium pilasters which extend down to floor level and are fixed to floor using mounting blocks.
Satin anodised aluminium slide operated bolt with circular face plate and emergency release facility. Faceplate and keep with concealed fixings.
Anti-finger trap satin anodised effect powder coated zinc rise and fall hinge. Outward opening hinge option available.
No pedestal required as the pilasters extend to floor level and are fixed to floor mounting blocks.
Partition to wall: Continuous satin anodised aluminium U-channel.
Coat hooks and toilet roll holders available.
File name | File type | |
---|---|---|
Centurion, Centurion Full Height & Centurion Privacy | Brochure | |
Product Portfolio | Brochure | |
Colour Selector | Brochure | |
Education | Brochure | |
Centurion MFC & HPL | BIM | |
Centurion SGL | BIM | |
Centurion MFC & HPL 2BTW | CAD Blocks | |
Centurion SGL 2BTW | CAD Blocks | |
Centurion MFC & HPL 2WA | CAD Blocks | |
Centurion SGL 2WA | CAD Blocks | |
Centurion MFC | NBS | |
Centurion HPL | NBS | |
Centurion SGL | NBS | |
Centurion, Centurion Full Height & Centurion Privacy | Technical Datasheet | |
Centurion | Fixing Instructions |
Select from a range of colours and materials, and order samples.
Our MFC toilet cubicles and panelling are available in all of our V Ranges, enabling you the ultimate style on a budget. We believe in matching products to our clients’ budgets and specifications. Quality doesn’t have to be expensive, as proved by our MFC washroom cubicles and panelling. Manufactured from 19mm nominal thickness high performance, melamine-faced chipboard with ABS edging, they are the ideal solution for dry environments with a low risk of vandalism. Although designed for dry room environments, our MFC toilet cubicles and panelling are nonetheless manufactured from high performance moisture-proof chipboard. Our MFC toilet cubicles and panelling solutions are available in 34 different laminate colours.
Our high pressure laminate (HPL) washroom cubicles and panelling are the affordable solution for more heavily used areas. Heat, scratch, impact and cigarette burn resistant, our high pressure laminate toilet cubicles are available in 34 different laminate colours. Manufactured from moisture-resistant chipboard faced with high pressure laminate; panels are 19mm nominal thickness with edges lipped with ABS. Across our entire range of HPL toilet cubicles and panelling, you will find the quality is uppermost. Our HPL washroom cubicles are installed in schools, offices, shopping malls, universities, or wherever there is a need for a hardwearing, robust toilet and washroom solution. Venesta’s high pressure laminate washroom cubicles and panelling are durable, sturdy and impact resistant.
If you need ultimate water resistance and impact protection, we offer our SGL toilet cubicles and panelling. Manufactured from tough, 13mm solid grade laminate, our SGL toilet cubicles and panelling meet the most stringent specifications of durability and hygiene. Our SGL washroom cubicles and panelling are totally impervious to water and available in 34 laminate colours. Offering maximum resistance to vandalism, our SGL toilet cubicles and panels feature polished black radiused edges, and are a nominal 13mm in thickness. Enhanced by high quality fittings, and available in both standard and bespoke size options, our SGL washroom cubicles are the ultimate choice for demanding environments, whether wet or dry. We pride ourselves in offering you products that meet both your site requirements and your budget. Our SGL toilet cubicles are available in the majority of our ranges, meaning we have SGL washroom cubicles to meet your exact specifications.
