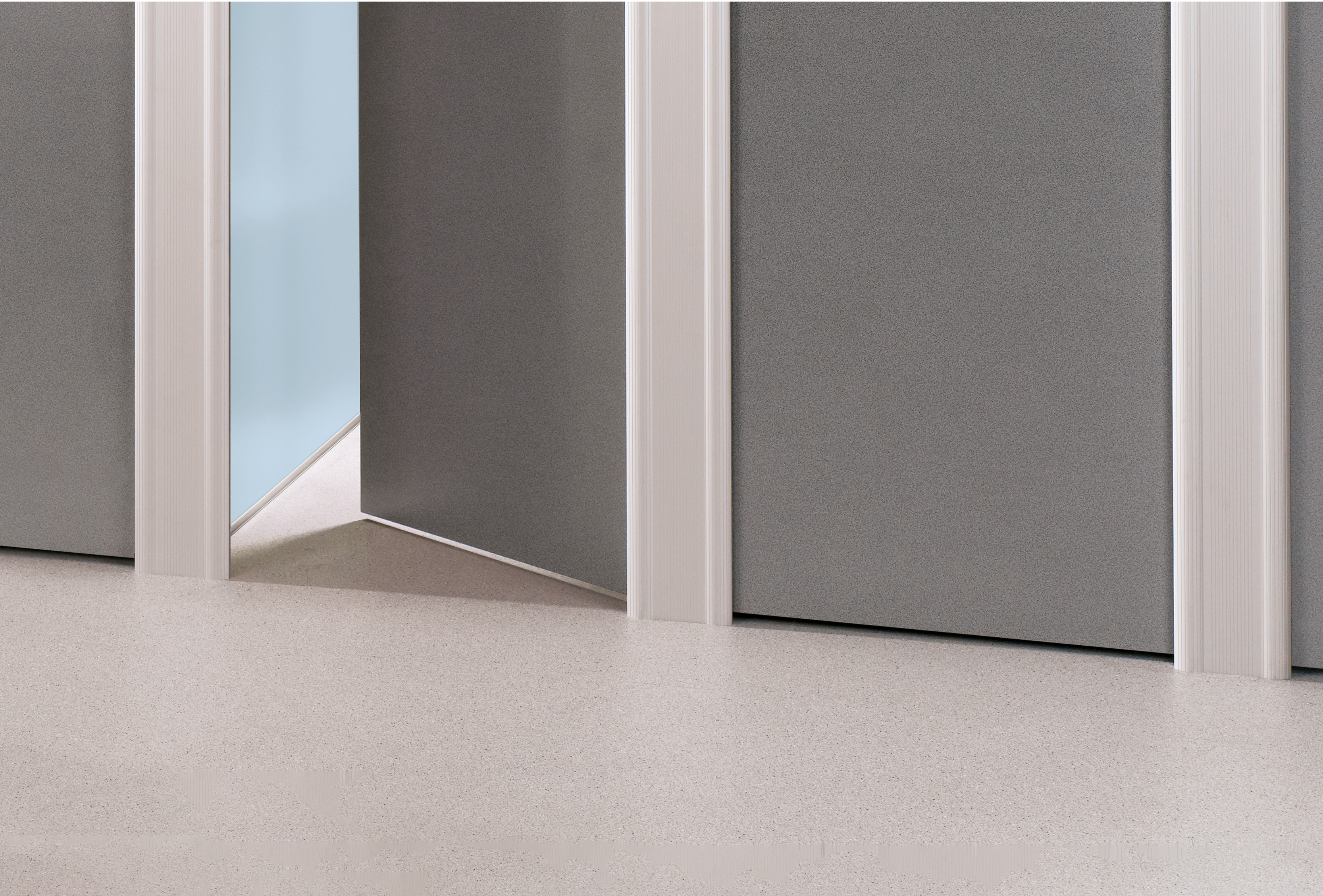

Where the finish allows, the 5mm clearance is extended from floor to ceiling creating a truly private space.
Privacy is becoming increasingly important, especially in the education sector. We have reduced the space all round the toilet cubicles to just 5mm removing all likelihood of unwanted attention, harassment or bullying.
The gaps are so slim, it is impossible to get a mobile phone into the cubicle. This is achieved by swapping the standard anti-finger-trap hinges for our new hinges, which can be set to open outward or inward.
Explore the options available when specifying Centurion toilet cubicles - from standard height, to Centurion Full Height and Centurion Privacy.
MFC: 2816mm.
HPL: 2816mm.
SGL: 2816mm.
MFC: 2040mm.
HPL: 2040mm.
SGL: 1922mm.
5mm at doors.
0mm at partitions and pilasters.
6.5mm.
For dry environments with low risk of vandalism. Panels are manufactured from 19mm nominal thickness high performance moisture-resistant melamine faced chipboard. Edges lipped with ABS.
For more heavily used washrooms, panels are heat, scratch and impact resistant. Manufactured from moisture-resistant chipboard faced with high pressure laminate, panels are 19mm nominal thickness. Edges lipped with ABS.
Solid grade laminate is extremely resistant to impact and all surfaces are impervious to water. Panels are 13mm nominal thickness with polished black radiused edges.
Available in MFC, HPL and SGL.
MFC, HPL and SGL: 34 colours from the standard range.
Cubicle hardware: Satin andoised aluminium and satin anodised effect powder coated zinc.
MFC and HPL: Matching ABS lipping.
SGL: Polished black radiused edge.
High strength extruded satin anodised aluminium headrail.
High strength extruded fluted satin anodised aluminium pilasters which extend down to floor level and are fixed to floor using mounting blocks.
Satin anodised aluminium slide operated bolt with circular face plate and emergency release facility. Faceplate and keep with concealed fixings.
Satin anodised effect powder coated zinc 5mm nominal door clearance rise and fall hinge.
Please note, this is NOT an anti-finger trap hinge.
No pedestal required as the pilasters extend to floor level and are fixed to floor mounting blocks.
Partition to wall: Continuous satin anodised aluminium U-channel.
Coat hooks and toilet roll holders available.
File name | File type | |
---|---|---|
Centurion, Centurion Full Height & Centurion Privacy | Brochure | |
Product Portfolio | Brochure | |
Colour Selector | Brochure | |
Education | Brochure | |
Centurion Privacy MFC & HPL | BIM | |
Centurion Privacy SGL | BIM | |
Centurion Privacy MFC & HPL 2BTW | CAD Blocks | |
Centurion Privacy SGL 2BTW | CAD Blocks | |
Centurion Privacy MFC & HPL 2WA | CAD Blocks | |
Centurion Privacy SGL 2WA | CAD Blocks | |
Centurion Privacy MFC | NBS | |
Centurion Privacy HPL | NBS | |
Centurion Privacy SGL | NBS | |
Centurion, Centurion Full Height & Centurion Privacy | Technical Datasheet | |
Centurion Privacy | Fixing Instructions |
Select from a range of colours and materials, and order samples.
Our MFC toilet cubicles and panelling are available in all of our V Ranges, enabling you the ultimate style on a budget. We believe in matching products to our clients’ budgets and specifications. Quality doesn’t have to be expensive, as proved by our MFC washroom cubicles and panelling. Manufactured from 19mm nominal thickness high performance, melamine-faced chipboard with ABS edging, they are the ideal solution for dry environments with a low risk of vandalism. Although designed for dry room environments, our MFC toilet cubicles and panelling are nonetheless manufactured from high performance moisture-proof chipboard. Our MFC toilet cubicles and panelling solutions are available in 34 different laminate colours.
Our high pressure laminate (HPL) washroom cubicles and panelling are the affordable solution for more heavily used areas. Heat, scratch, impact and cigarette burn resistant, our high pressure laminate toilet cubicles are available in 34 different laminate colours. Manufactured from moisture-resistant chipboard faced with high pressure laminate; panels are 19mm nominal thickness with edges lipped with ABS. Across our entire range of HPL toilet cubicles and panelling, you will find the quality is uppermost. Our HPL washroom cubicles are installed in schools, offices, shopping malls, universities, or wherever there is a need for a hardwearing, robust toilet and washroom solution. Venesta’s high pressure laminate washroom cubicles and panelling are durable, sturdy and impact resistant.
If you need ultimate water resistance and impact protection, we offer our SGL toilet cubicles and panelling. Manufactured from tough, 13mm solid grade laminate, our SGL toilet cubicles and panelling meet the most stringent specifications of durability and hygiene. Our SGL washroom cubicles and panelling are totally impervious to water and available in 34 laminate colours. Offering maximum resistance to vandalism, our SGL toilet cubicles and panels feature polished black radiused edges, and are a nominal 13mm in thickness. Enhanced by high quality fittings, and available in both standard and bespoke size options, our SGL washroom cubicles are the ultimate choice for demanding environments, whether wet or dry. We pride ourselves in offering you products that meet both your site requirements and your budget. Our SGL toilet cubicles are available in the majority of our ranges, meaning we have SGL washroom cubicles to meet your exact specifications.
