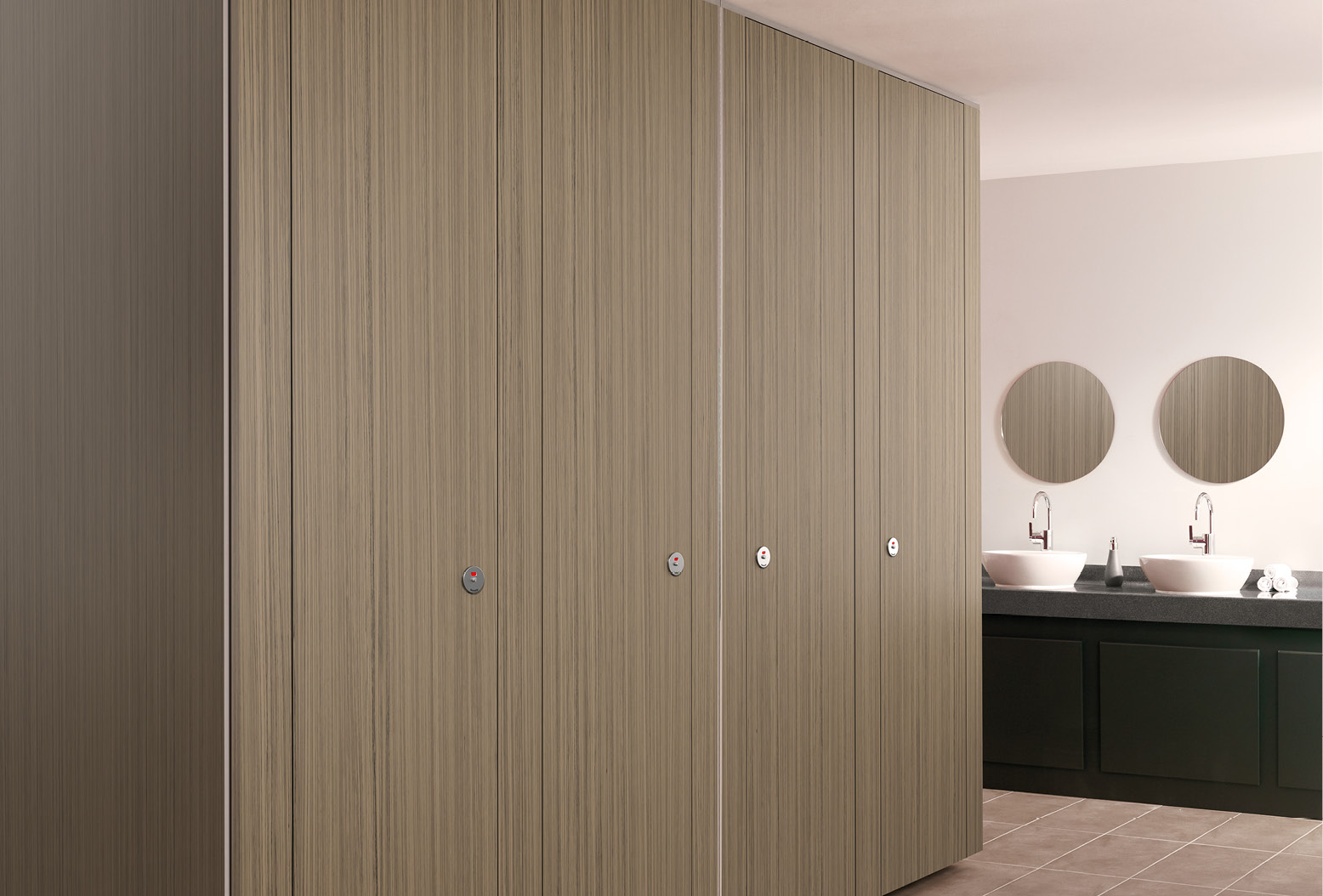

Unity Full Height's floating, flush front always makes a big impact.
There are five material options to choose from, with 34 laminate colours or 10 ColourCoat or ColourCoat High Gloss finishes.
Unity Full Height toilet cubicles are finished with satin anodised aluminium and stainless steel fittings.
Our Unity Full Height toilet cubicles were specified at the busy ICON Outlet shopping centre at London's O2 Arena.
Unity's full height, flush front always makes a big impact. Unity is often recommended for being great value without compromising on quality or functionality. The simple and striking design is finished with satin anodised aluminium and stainless steel fittings and always looks very stylish.
There are five material options to choose from, with 34 laminate colours or 10 ColourCoat or ColourCoat High Gloss finishes. The design possibilities are endless. With just a 50mm floor and 20mm ceiling clearance, Unity Full Height cubicles create a private space, ideal for unisex toilets and changing rooms.
This range can also be extended with a privacy skirting for a full privacy option.
Explore Unity toilet cubicles - standard height, full height and privacy options.
HPL: 2840mm.
SGL: 2823mm.
ColourCoat: 2840mm.
ColourCoat High Gloss: 2840mm.
HPL: 2084mm.
SGL: 1921mm.
ColourCoat: 2084mm.
ColourCoat High Gloss: 2084mm.
50mm.
20mm.
For more heavily used washrooms, panels are heat, scratch, impact and cigarette burn resistant. Moisture-resistant chipboard faced with high pressure laminate. Edges lipped with ABS. Doors and pilasters are 35mm nominal thickness with an MDF core, partitions are 19mm nominal thickness.
Solid grade laminate is extremely resistant to impact and all surfaces are impervious to water. Panels are 13mm nominal thickness with polished black radiused edges.
Panels have an MDF core. Doors and pilasters are sprayed with a coat of primer and finished with 20% gloss pigmented lacquer. Doors and pilasters are 35mm nominal thickness, partitions are 18mm nominal thickness.
Panels have an MDF core. Doors and pilasters are sprayed with a coat of primer and finished with 80% gloss pigmented lacquer. Doors and pilasters are 35mm nominal thickness, partitions are 18mm nominal thickness.
Available in HPL, SGL, ColourCoat and ColourCoat High Gloss.
HPL and SGL: 34 colours from the standard range.
ColourCoat & ColourCoat High Gloss: 10 colours.
Cubicle hardware: Satin anodised aluminium and stainless steel. Optional choice of black, brass or bronze effect coatings.
HPL: Matching ABS lipping.
SGL: Polished black radiused edge.
ColourCoat: Edges sprayed with a coat of primer and finished with 20% gloss pigmented lacquer.
ColourCoat High Gloss: Edges are sprayed with a coat of primer and finished with 80% gloss pigmented lacquer.
Slimline aluminium profile headrail in satin anodised finish. 3 part fixing system which allows cubicles to finish only 20mm below ceiling height.
Satin anodised aluminium flip indicator bolt with emergency release facility and faceplate. 35mm doors have an internal mortice lock. All with concealed fixings.
Satin anodised aluminium modular rise and fall butt hinge, set to fall open or closed.
Adjustable satin anodised aluminium pedestal with a ± 5mm tolerance.
Partition to wall: Satin anodised aluminium U-channel.
Pilaster to partition: Satin anodised aluminium U-channel.
Pilaster to wall: Satin anodised aluminium L-angle 13mm (SGL), E-channel 36mm (HPL, CC and CCHG).
Coat hooks and toilet roll holders available.
File name | File type | |
---|---|---|
Unity, Unity Full Height & Unity Full Height Privacy | Brochure | |
Product Portfolio | Brochure | |
Colour Selector | Brochure | |
Education | Brochure | |
Unity Full Height HPL & CC | BIM | |
Unity Full Height SGL | BIM | |
Unity & Unity Full Height HPL 2BTW | CAD Blocks | |
Unity & Unity Full Height SGL 2BTW | CAD Blocks | |
Unity & Unity Full Height HPL 2WA | CAD Blocks | |
Unity & Unity Full Height SGL 2WA | CAD Blocks | |
Unity Full Height HPL | NBS | |
Unity Full Height SGL | NBS | |
Unity Full Height ColourCoat | NBS | |
Unity Full Height ColourCoat High Gloss | NBS | |
Unity, Unity Full Height & Unity Full Height Privacy | Technical Datasheet | |
Unity HPL & CC 50mm FC | Fixing Instructions | |
Unity SGL 50mm FC | Fixing Instructions |
Select from a range of colours and materials, and order samples.
Our MFC toilet cubicles and panelling are available in all of our V Ranges, enabling you the ultimate style on a budget. We believe in matching products to our clients’ budgets and specifications. Quality doesn’t have to be expensive, as proved by our MFC washroom cubicles and panelling. Manufactured from 19mm nominal thickness high performance, melamine-faced chipboard with ABS edging, they are the ideal solution for dry environments with a low risk of vandalism. Although designed for dry room environments, our MFC toilet cubicles and panelling are nonetheless manufactured from high performance moisture-proof chipboard. Our MFC toilet cubicles and panelling solutions are available in 34 different laminate colours.
Our high pressure laminate (HPL) washroom cubicles and panelling are the affordable solution for more heavily used areas. Heat, scratch, impact and cigarette burn resistant, our high pressure laminate toilet cubicles are available in 34 different laminate colours. Manufactured from moisture-resistant chipboard faced with high pressure laminate; panels are 19mm nominal thickness with edges lipped with ABS. Across our entire range of HPL toilet cubicles and panelling, you will find the quality is uppermost. Our HPL washroom cubicles are installed in schools, offices, shopping malls, universities, or wherever there is a need for a hardwearing, robust toilet and washroom solution. Venesta’s high pressure laminate washroom cubicles and panelling are durable, sturdy and impact resistant.
If you need ultimate water resistance and impact protection, we offer our SGL toilet cubicles and panelling. Manufactured from tough, 13mm solid grade laminate, our SGL toilet cubicles and panelling meet the most stringent specifications of durability and hygiene. Our SGL washroom cubicles and panelling are totally impervious to water and available in 34 laminate colours. Offering maximum resistance to vandalism, our SGL toilet cubicles and panels feature polished black radiused edges, and are a nominal 13mm in thickness. Enhanced by high quality fittings, and available in both standard and bespoke size options, our SGL washroom cubicles are the ultimate choice for demanding environments, whether wet or dry. We pride ourselves in offering you products that meet both your site requirements and your budget. Our SGL toilet cubicles are available in the majority of our ranges, meaning we have SGL washroom cubicles to meet your exact specifications.
VEN324 | LRV 17
Order a sampleVEN370 | LRV 35
Order a sampleVEN366 | LRV 52
Order a sampleVEN365 | LRV 65
Order a sampleVEN354 | LRV 54
Order a sampleVEN378 | LRV 20
Order a sampleVEN367 | LRV 38
Order a sampleVEN368 | LRV 54
Order a sampleVEN360 | LRV 46
Order a sampleVEN361 | LRV 55
Order a sampleVEN359 | LRV 22
Order a sampleVEN353 | LRV 20
Order a sampleVEN371 | LRV 25
Order a sampleVEN377 | LRV 11
Order a sampleVEN356 | LRV 8
Order a sampleVEN364 | LRV 8
Order a sampleVEN348 | LRV 24
Order a sampleVEN376 | LRV 52
Order a sampleVEN352 | LRV 81
Order a sampleVEN369 | LRV 66
Order a sampleVEN351 | LRV 58
Order a sampleVEN350 | LRV 37
Order a sampleVEN349 | LRV 10
Order a sampleVEN337 | LRV 5
Order a sampleVEN319 | LRV 42
Order a sampleVEN363 | LRV 57
Order a sampleVEN362 | LRV 31
Order a sampleVEN372 | LRV 27
Order a sampleVEN358 | LRV 21
Order a sampleVEN374 | LRV 9
Order a sampleVEN373 | LRV 11
Order a sampleVEN355 | LRV 13
Order a sampleVEN357 | LRV 36
Order a sampleVEN375 | LRV 45
Order a sampleColourCoat is our vibrant range of contemporary spray painted colours, with an MDF core. Doors and pilasters are 35mm nominal thickness, partitions are 18mm nominal thickness. Doors, pilasters and panels finished in ColourCoat have a gloss value of 20%.
Edges are sprayed with a coat of primer and finished with 20% gloss pigmented lacquer.
Note: for V3 ColourCoat products, any colour from the RAL Classic Colour Chart can be chosen (except fluorescent or metallic).
RAL4006
Order a sampleRAL3000
Order a sampleRAL2008
Order a sampleRAL1023
Order a samplePantone 382
Order a sampleRAL5023
Order a sampleRAL9003
Order a sampleRAL7035
Order a sampleRAL7015
Order a sampleRAL7026
Order a sampleColourCoat High Gloss is our vibrant range of contemporary spray painted colours, with an MDF core. Doors and pilasters are 35mm nominal thickness, partitions are 18mm nominal thickness. Doors, pilasters and panels finished in ColourCoat High Gloss have a gloss value of 80%.
Edges are sprayed with a coat of primer and finished with 80% gloss pigmented lacquer.
Note: for V3 ColourCoat High Gloss products, any colour from the RAL Classic Colour Chart can be chosen (except fluorescent or metallic).
RAL4006
Order a sampleRAL3000
Order a sampleRAL2008
Order a sampleRAL1023
Order a samplePantone 382
Order a sampleRAL5023
Order a sampleRAL9003
Order a sampleRAL7035
Order a sampleRAL7015
Order a sampleRAL7026
Order a sampleMartin Rees, our Chairman and Head of Design and Technical explains all the features and benefits of Unity. Take a sneaky peak into our factory and see how easy it is to install a very stylish, yet economical washroom range.
