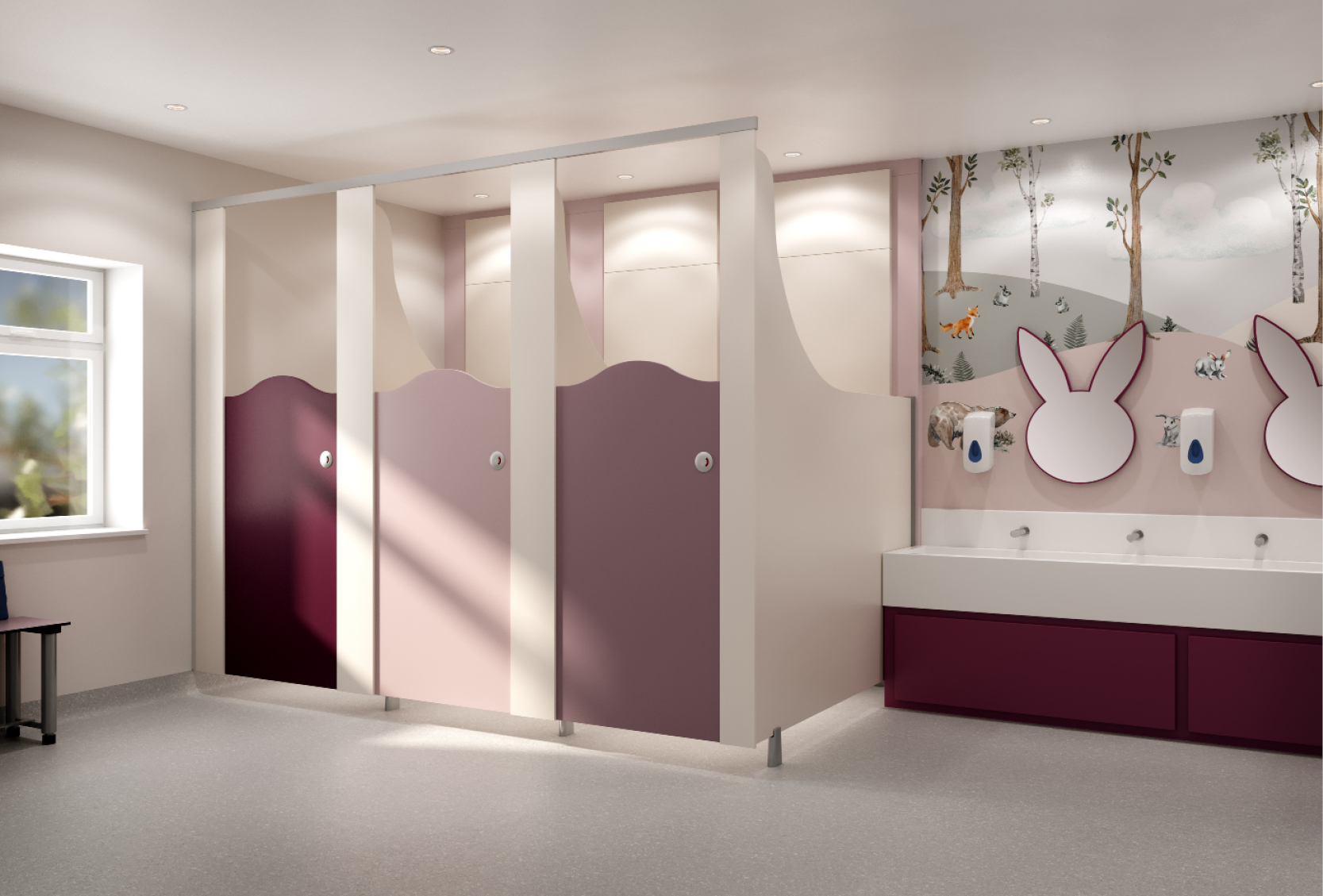

Genesis features four cubicle height options, making it suitable for the entire 2-11 age range.
Genesis children's toilet cubicles feature clever safety features as standard, including emergency release indicator bolts.
Easy to fix, one piece construction headrail - meaning it's sturdy and can withstand heavy usage.

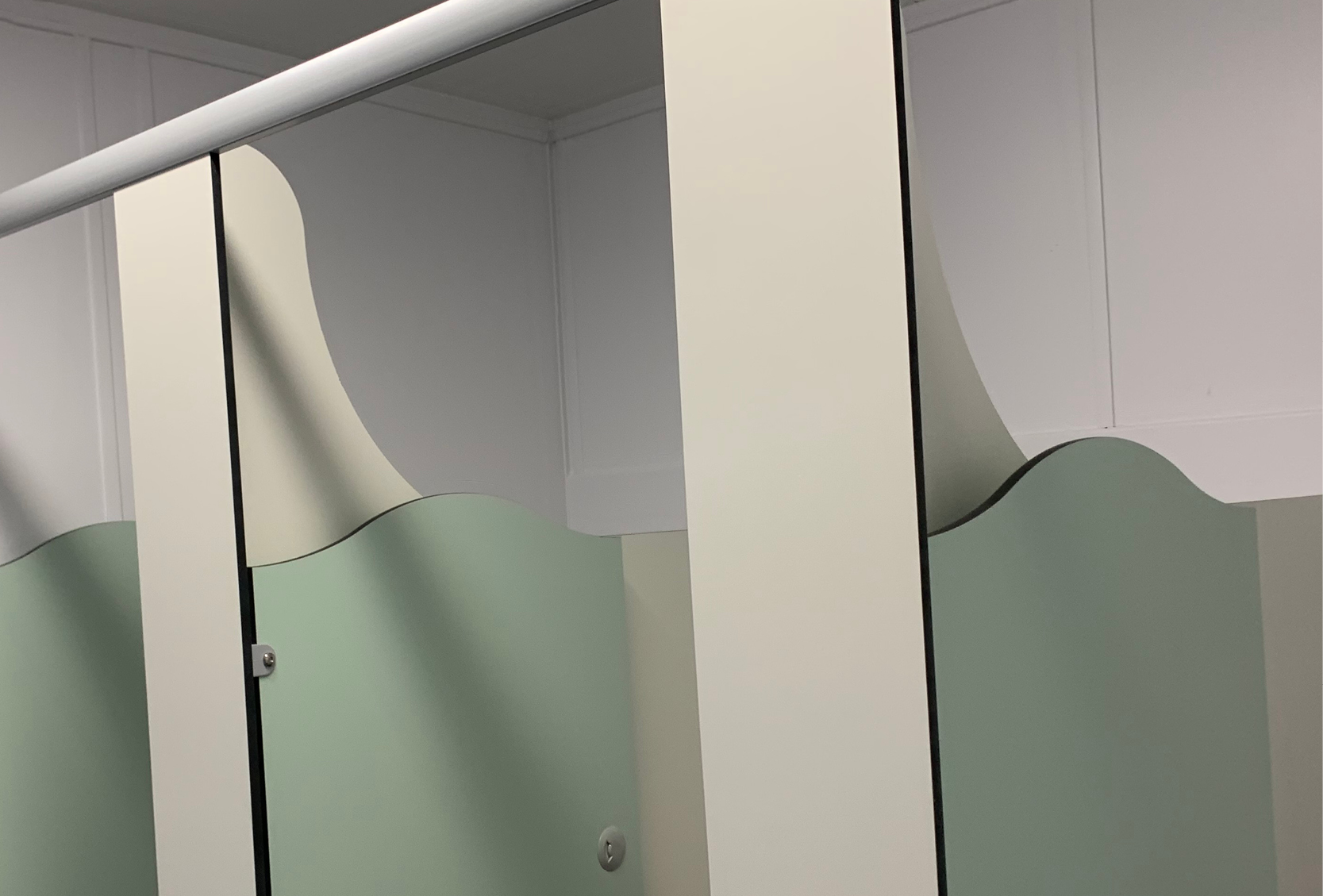

Sturdy and fun, Genesis stimulates children's imaginations with shaped doors and partitions.
Genesis toilet cubicles are available in 34 on-trend colours to create fun, bold washroom designs.
Robust fittings with child friendly safety features as standard with Genesis children's toilet cubicles.
Genesis features four cubicle height options, making it suitable for the entire 2-11 age range, and clever safety features including anti-finger-trap hinges, emergency release indicator bolts and magnetic catches.
Sturdy and fun, Genesis stimulates children's imaginations with shaped doors and partitions in 34 vibrant colours, making your design possibilities endless.
MFC: 1950mm.
HPL: 1950mm.
SGL: 1950mm.
Height A - 900mm (1000mm FFL to curved edge).
Height B - 1100mm (1200mm FFL to curved edge).
Height C - 1300mm (1400mm FFL to curved edge).
Height D - 1500mm (1600mm FFL to curved edge).
*All door heights include 100mm ground clearance.
MFC: 2097mm.
HPL: 2067mm.
SGL: 1921mm.
100mm.
For dry environments with low risk of vandalism. Panels are manufactured from 19mm nominal thickness high performance moisture-resistant melamine faced chipboard. Edges lipped with ABS.
For more heavily used washrooms, panels are heat, scratch and impact resistant. Manufactured from moisture-resistant chipboard faced with high pressure laminate, panels are 19mm nominal thickness. Edges lipped with ABS.
Solid grade laminate is extremely resistant to impact and all surfaces are impervious to water. Panels are 13mm nominal thickness with polished black radiused edges.
Available in MFC, HPL and SGL.
MFC, HPL and SGL: 34 colours from the standard range.
Cubicle hardware: Light Grey ABS, satin anodised effect powder coated zinc and satin anodised aluminium.
MFC and HPL: Matching ABS lipping.
SGL: Polished black radiused edge.
Easy to fix, one piece construction, in satin anodised aluminium with matching end cap.
Light Grey ABS or satin anodised effect powder coated zinc easy grip indicator bolt and keep with emergency release facility and concealed fixings.
Magnetic catch option in lieu of indicator bolts.
Satin anodised effect powder coated zinc anti-finger trap safety hinge in Light Grey.
Height adjustable for uneven floors, with concealed fixings, available in Light Grey ABS or satin anodised effect powder coated zinc. Where possible, pedestals located on partitions.
Partition to wall: Continuous satin anodised aluminium U-channel.
Pilaster to partition: Continuous satin anodised aluminium U-channel.
Pilaster to wall: Continuous satin anodised aluminium U-channel.
Coat hooks and toilet roll holders available.
File name | File type | |
---|---|---|
Genesis | Brochure | |
Education | Brochure | |
Product Portfolio | Brochure | |
Colour Selector | Brochure | |
Genesis MFC & HPL | BIM | |
Genesis SGL | BIM | |
Genesis MFC & HPL 2BTW | CAD Blocks | |
Genesis SGL 2BTW | CAD Blocks | |
Genesis MFC & HPL 2WA | CAD Blocks | |
Genesis SGL 2WA | CAD Blocks | |
Genesis MFC | NBS | |
Genesis HPL | NBS | |
Genesis SGL | NBS | |
Genesis | Fixing Instructions | |
Genesis | Technical Datasheet |
Select from a range of colours and materials, and order samples.
Our MFC toilet cubicles and panelling are available in all of our V Ranges, enabling you the ultimate style on a budget. We believe in matching products to our clients’ budgets and specifications. Quality doesn’t have to be expensive, as proved by our MFC washroom cubicles and panelling. Manufactured from 19mm nominal thickness high performance, melamine-faced chipboard with ABS edging, they are the ideal solution for dry environments with a low risk of vandalism. Although designed for dry room environments, our MFC toilet cubicles and panelling are nonetheless manufactured from high performance moisture-proof chipboard. Our MFC toilet cubicles and panelling solutions are available in 34 different laminate colours.
Our high pressure laminate (HPL) washroom cubicles and panelling are the affordable solution for more heavily used areas. Heat, scratch, impact and cigarette burn resistant, our high pressure laminate toilet cubicles are available in 34 different laminate colours. Manufactured from moisture-resistant chipboard faced with high pressure laminate; panels are 19mm nominal thickness with edges lipped with ABS. Across our entire range of HPL toilet cubicles and panelling, you will find the quality is uppermost. Our HPL washroom cubicles are installed in schools, offices, shopping malls, universities, or wherever there is a need for a hardwearing, robust toilet and washroom solution. Venesta’s high pressure laminate washroom cubicles and panelling are durable, sturdy and impact resistant.
If you need ultimate water resistance and impact protection, we offer our SGL toilet cubicles and panelling. Manufactured from tough, 13mm solid grade laminate, our SGL toilet cubicles and panelling meet the most stringent specifications of durability and hygiene. Our SGL washroom cubicles and panelling are totally impervious to water and available in 34 laminate colours. Offering maximum resistance to vandalism, our SGL toilet cubicles and panels feature polished black radiused edges, and are a nominal 13mm in thickness. Enhanced by high quality fittings, and available in both standard and bespoke size options, our SGL washroom cubicles are the ultimate choice for demanding environments, whether wet or dry. We pride ourselves in offering you products that meet both your site requirements and your budget. Our SGL toilet cubicles are available in the majority of our ranges, meaning we have SGL washroom cubicles to meet your exact specifications.
VEN324 | LRV 17
Order a sampleVEN370 | LRV 35
Order a sampleVEN366 | LRV 52
Order a sampleVEN365 | LRV 65
Order a sampleVEN354 | LRV 54
Order a sampleVEN378 | LRV 20
Order a sampleVEN367 | LRV 38
Order a sampleVEN368 | LRV 54
Order a sampleVEN360 | LRV 46
Order a sampleVEN361 | LRV 55
Order a sampleVEN359 | LRV 22
Order a sampleVEN353 | LRV 20
Order a sampleVEN371 | LRV 25
Order a sampleVEN377 | LRV 11
Order a sampleVEN356 | LRV 8
Order a sampleVEN364 | LRV 8
Order a sampleVEN348 | LRV 24
Order a sampleVEN376 | LRV 52
Order a sampleVEN352 | LRV 81
Order a sampleVEN369 | LRV 66
Order a sampleVEN351 | LRV 58
Order a sampleVEN350 | LRV 37
Order a sampleVEN349 | LRV 10
Order a sampleVEN337 | LRV 5
Order a sampleVEN319 | LRV 42
Order a sampleVEN363 | LRV 57
Order a sampleVEN362 | LRV 31
Order a sampleVEN372 | LRV 27
Order a sampleVEN358 | LRV 21
Order a sampleVEN374 | LRV 9
Order a sampleVEN373 | LRV 11
Order a sampleVEN355 | LRV 13
Order a sampleVEN357 | LRV 36
Order a sampleVEN375 | LRV 45
Order a sampleMartin Rees, our Chairman and Head of Design and Technical, explains all the features and benefits of Genesis. Take a sneaky peak into our factory and see how easy it is to install the perfect school washroom.
